Quadrajet Parts.com's premium quality Rochester Quadrajet carburetor rebuild kits are superior to common auto parts store kits. Updated for use with today's common pump gasoline that contains alcohol. Quality OEM style needle and seat assembly, no generic "all in one" seat assembly in our kits.
Q-Jet carburetor rebuild kit contains the following parts:
Carb to Air cleaner gasket
Alcohol resistant accelerator pump cup
Accelerator pump check ball
Accelerator pump cup installation tool
Accelerator pump arm roll pin
Inlet needle and seat assembly and gasket
Fuel inlet gasket
Float height setting tool
Assortment of clips
Secondary Metering well super gasket
Illustrated instructions included
We recommended the following additional items to complement this carburetor rebuild kit:
- Carburetor Float -
(Go to the Quadrajet Floats page and enter your carburetor number in the red box on the center of the page to identify the correct float for your application)
- 4802 Idle Pickup Tubes -
(We highly recommend that you pull the original Idle Pickup Tubes during your rebuild to ensure carburetor passages are completely clean and idle pickup tube orifices are not blocked)
Click here to view tech article on replacing 4802.
- 1742/1743 Secondary Metering Well Plugs -
(It's very common for the factory installed well plugs to leak down overnight causing hard/delayed starting, we recommend installing these 0-ringed well plugs and solving the problem)
Click here to view tech article on replacing 1742/1743 Secondary Well Plugs.
- 3622 Power Piston Retaining Bushing -
Click here to view tech article on preventing bent rods.
Not sure which rebuild kit is correct for your carburetor?
Use the "Search for your Rebuild Kit" search on the Rebuild Kits main page, just enter in your Quadrajet carburetor number.

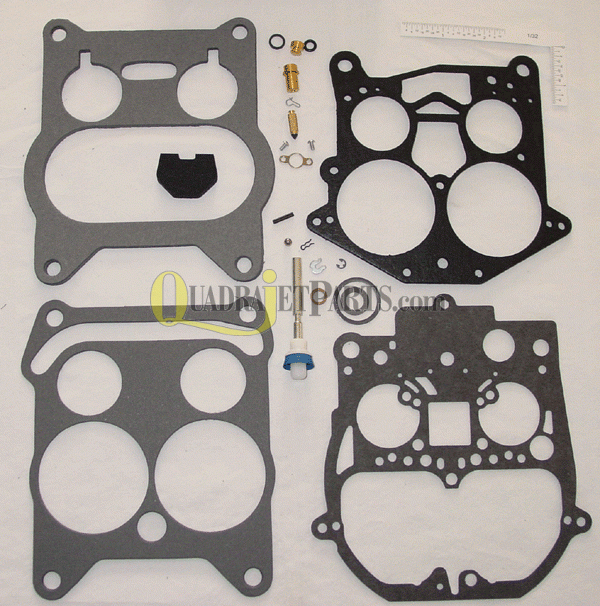

Picture showing carburetor rebuild kit components is an accurate representation of the style of gaskets you will receive. However, there may be slight differences in materials due to parts availability. These differences will not affect performance of the rebuild kit.
Rochester Quadrajet Application:
Quadrajet carburetors serviced with this rebuild kit:
7025200, 7025201, 7025220, 7025221, 7026200, 7026201, 7026202, 7026203, 7026204, 7026205, 7026210, 7026250, 7026254, 7026255, 7026256, 7026260, 7026261, 7027085, 7027200, 7027201, 7027202, 7027203, 7031421, 7036200, 7036201, 7036202, 7036203, 7036204, 7036205, 7036210, 7036250, 7036254, 7037081, 7037200, 7037201, 7037202, 7037203
Not sure where to find your carburetor number? Click here to read article on Carburetor Number Identification.
